MASS Storage

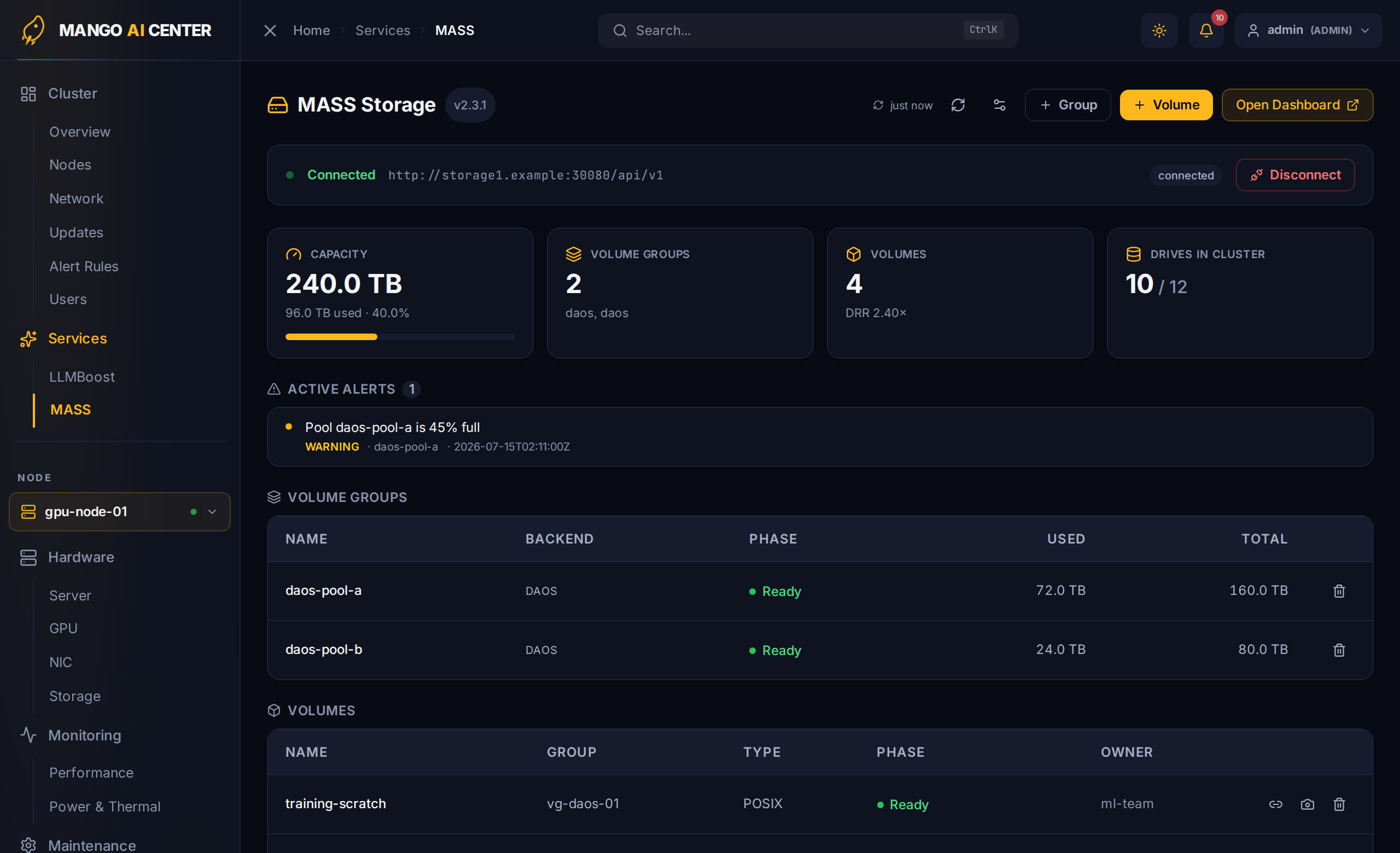

The Services → MASS page integrates a MASS (BoostX-SDS) software-defined-storage cluster into MAC. The api-server proxies the MASS Manager REST API, so MAC can view capacity, provision volumes, and wire MAC nodes into the storage fabric without leaving the dashboard.

MASS StorageMASS Storage

Connecting​

MASS is connected by an administrator from the connection card (or the connection settings toggle in the header). Supply the MASS Manager API endpoint (e.g. http://storage1.example:30080/api/v1), a username, and a password. MAC stores the credentials on the api-server and uses them to obtain a session token (JWT) for every subsequent call. The connectivity strip shows the live state — Not configured, Connected, or Disconnected — along with the endpoint and a raw status (connected / auth_failed / unreachable / …). Administrators can Disconnect to clear the stored credentials, and an Open Dashboard link jumps to the native MASS UI.

Reads are available to any signed-in user once connected; provisioning actions require the operator or admin role, and credential changes are admin-only.

Metric Tiles​

Four tiles summarize the cluster:

  • Capacity — total backend capacity, used bytes, and a usage bar
  • Volume Groups — count, with the backends in use (e.g. daos)
  • Volumes — count, with the overall data-reduction ratio (DRR)
  • Drives in Cluster — how many discovered NVMe drives are part of the cluster, out of the total seen

Active Alerts​

When MASS reports alerts, they appear as a list above the tables — severity, component, message, and time, newest first.

Volume Groups​

A table of the backend storage pools: name, backend, phase, used, and total capacity. Operators can create a volume group (name, label, size, backend) or delete one (which destroys its backend pool and every volume in it).

Volumes​

A table of provisioned volumes: name, parent group, type (POSIX / ANY), phase, and owner. Operator actions per row:

  • Attach to node — ensures the target node has a MASS identity, then prepares the data-path mount and shows the exact mount command to run on that node.
  • Create snapshot — point-in-time snapshot of the volume.
  • Delete — irreversible; guarded by a confirmation dialog.

Creating a volume takes a name, a parent volume group, an owner, a size (GiB), and a type.

NVMe Drives​

Every NVMe drive discovered across the MAC nodes: node, model, serial, capacity, temperature, and whether the drive is in the cluster (claimed by MASS) or still standalone.

How MAC and MASS Are Coupled​

Beyond the read/provision proxy, MAC acts as an identity broker for the storage fabric: every MAC node can be registered as a MASS principal (GET/POST /api/v1/mass/identities), and the Attach to node flow performs the two-step "ensure identity, then prepare the mount" orchestration in a single MAC action (POST /api/v1/mass/attach). The mount itself runs on the node via the MASS client.

What's Not on the Page​

The page reflects only what the MASS Manager API exposes. Data-path mounting happens on the node (MAC hands you the command); MAC does not run it for you.
